Highlights

• Abstinence-induced craving and reward-seeking occur in humans and animals, and they are thought to underlie relapse.

• We speculate that hypothalamic-thalamic-striatal circuitry is a key modulator of abstinence-induce reward-seeking.

• Biological sex affects incubation of craving depending on the reinforcer and the method of abstinence.

1. Introduction

“Semper in absentis felicior aestus amantis” (Propertius, Elegies 2.33b.21)

[“Passion is always greater in absent lovers”] (Kline, A.S. transl., Liber Publications 2001)

The compulsive drive to self-administer drugs of abuse or palatable foods (e.g., fatty or sweet foods) to the point it harms one’s social, psychological, and physical health defines Substance Use Disorder (SUD) and binge eating disorders/obesity. The patterns of behavior and neurobiological mechanisms are similar between the two (Millan et al., 2017), and both are considered chronic, relapsing brain diseases (Volkow et al., 2013). The major impediment to the treatment of these disorders is high rates of relapse after periods of abstinence (O’Brien, 1997). There are numerous external and internal factors that lead to relapse in both humans and animal models. Broadly these factors lead to craving, which is defined as an overwhelmingly strong desire or need to use a drug or eat a palatable food. In humans, the experience of craving is a juggernaut that typically leads to relapse and yet has been nearly impossible to fully understand at a neurobiological level. Clinical and preclinical studies have shown that craving and relapse can be triggered by at least one of the following factors: acute exposure to the reinforcing stimulus (i.e., drug or food), cues or contexts associated with positive or negative reinforcers, or stress (for review, see Venniro et al., 2016). Importantly, stress and cues associated with negative affective states can be independent of the substance disorder or due to abstinence-induced withdrawal symptoms (Chartoff & Carlezon, 2014).

In this review we focus on the effect of abstinence on either opioid- or palatable food-seeking. It is critical to note that “abstinence” is a broad term in the context of this review. First, it can trigger a withdrawal state in the absence of the reinforcer, which is known to contribute to craving and—in animal models—reinstatement of reward-seeking (e.g. negative reinforcement; (Evans & Cahill, 2016; Koob, 2020). Second, abstinence can be as short as a day or as long as months or years. A particularly insidious feature of addictive-like behavior--whether the motivation is to ingest drug or food--is that craving can increase over time with abstinence. Preclinical scientists have dubbed this “incubation of drug craving” (Grimm, 2001), and defined it as a hypothetical motivational process in which there is a time-dependent increase in cue-induced reward-seeking. This has been shown to occur after withdrawal from both opioid and food self-administration in rats and humans (Grimm, 2020; Zhou et al., 2009). Of note, the data from humans include the common caveat that the timing and methods of manipulating abstinence periods are variable, thus adding to the complexity of trying to understand this phenomenon solely in humans.

A number of outstanding, in-depth reviews have covered extinction- and abstinence-based models of relapse to drug/food seeking (see Venniro et al., 2016; Nair et al., 2009; Grimm, 2020). Here we focus on abstinence-induced seeking of opioids and palatable foods, the mechanisms of which both overlap and are distinct from those determined for psychostimulants (Badiani et al. 2011). In that vein, we seize upon a slew of recent studies that have expanded focus outward from the traditional corticolimbic dopamine system to include hypothalamic–thalamic–striatal circuitry (Millan et al., 2017; Otis et al., 2019). Specifically, we describe how the lateral hypothalamus (LH), paraventricular nucleus of the thalamus (PVT), and the nucleus accumbens (NAc) interconnect and contribute to abstinence-induced opioid- and (high fat or sweet) food-seeking. As hypothalamic and midline thalamic regions are integral to the regulation of arousal, energy metabolism, reward and aversion, this broader neural circuit offers many mechanistic answers and avenues for future research.

Evidence suggests that gender and biological sex modulate compulsive, addictive-like behavior, including incubation of craving and relapse (Hallam et al., 2016; McHugh et al., 2018). Since relapse has been identified as one of the key blocks to successful treatment, understanding sex-dependent mechanisms contributing to relapse is an essential component of scientific inquiry. As such, another goal of this review is to describe, when known, studies that reveal sex-dependent differences or comparisons.

2. Clinical relevance of abstinence-induced reward-seeking

Drugs of abuse and highly palatable foods can establish Pavlovian association with external stimuli previously associated with their consumption (Volkow et al., 2013). In humans, drug or food cues elicit a subjective craving state (“urge” or “desire”) to consume or seek the reward. These craving states can lead to relapse, which for both drugs and food, is a major hurdle in the treatment of substance use disorder (O’Brien, 1997) and weight loss in obese people (Nair, 2009). This is particularly important because the subjective craving for both drugs and food increases during abstinence.

2.1. Abstinence-induced food-seeking in humans

Cues such as the sight, smell, and taste of food reliably signal food intake and act as conditioned stimuli that can potentially trigger food-seeking. These food cue responses could increase the probability of overeating (Wardle, 1990). In people who restrain their food intake, food predictive cue presentations can lead to a strong desire to eat and subsequent binging (Sobik et al., 2005). Moreover, people who were exposed to high-fat foods during dieting are more likely to relapse to their unhealthy eating habits (Gorin et al., 2004). Thus, both abstinence from eating and exposure to food cues increases food cravings and increases food-seeking and food intake. Additionally, food deprivation has been shown to increase the physiological responses specifically to food-related cues (Drobes et al., 2001).

It is known that the primary cause of obesity is overeating. Human studies have shown that overweight individuals have stronger brain blood-oxygen-level-dependent (BOLD) imaging signals in response to food cues compared to healthy weight people (Frankort et al., 2012). These BOLD imaging signals have been shown to be strongest in the VTA, PFC, Amy, and the NAc (Martin et al., 2010). Additionally, clinical studies have shown that thalamic nuclei specifically activate in response to reward craving and reward cue presentation (George et al., 2001). However, the resolution in human imaging studies makes it difficult to distinguish the PVT from other thalamic nuclei. Nonetheless, thalamic nuclei closely interact with the mesocorticolimbic reward system and have been implicated in playing a key role in influencing food consumption and food-seeking in preclinical models (see Ferrario et al., 2016; Millan et al., 2017 for review).

There are clear biological sex differences in the regulation of food intake and body weight in humans (Woods et al., 2003). These differences have been reported to be driven by several factors such as: leptin and insulin sensitivity, gonadal hormones, sex chromosome-associated genes that influence energy homeostasis, fat distribution and appetite. Thus, understanding sex-specific mechanisms of the aforementioned factors is important to understand the development of obesity and overeating in both men and women. In women, caloric intake fluctuates across the menstrual cycle (Buffenstein et al., 1995). These changes in caloric intake are mediated by natural fluctuations of ovarian hormones throughout the cycle. For example, fluctuations in estradiol negatively predict shifts in food intake, progesterone shows a positive correlation, and the combination of both estradiol and progesterone mediates a periovulatory drop in eating (Roney and Simmons, 2017). A handful of studies have also shown that ovarian hormones play a key role in modulating the activity of the mesolimbic reward system nuclei (NAc, Amy and LH) in response to the presentation of food cues (Frank et al., 2010; Alonso-Alonso et al., 2011). Although obese or overweight men and women both exhibit increased responsivity to high-calorie food when compared to their lean counterparts, women tend to be more responsive. In addition, women show greater activation than men in cortical regions when food cues are presented (Killgore et al., 2010).

2.2. Abstinence-induced opioid-seeking in humans

Opioid use disorder (OUD) can be segmented into pathological use of illicit opioids (e.g., heroin) or prescription opioids (e.g., oxycodone). Patterns of OUDs have shifted recently, with an increase in concurrent prescription opioid- and heroin-use in people with OUD (Cicero et al., 2015). Although it has been difficult to obtain clear, direct evidence that opioid craving is heightened during periods of abstinence in humans, there are increasing studies examining stress, affect, impulsivity, and how triggers of these states change/increase over opioid abstinence periods. For example, it has been shown that although response inhibition is improved over time in heroin abstainers, that effect can be reduced by exposure to drug-related cues, which may increase the risk of relapse, and is a major impediment to treatment (Su et al., 2020). Increased opioid craving is positively correlated with stronger BOLD fMRI signals within mesocorticolimbic and other limbic regions of the brain, including cortex, dorsal and ventral striatum, thalamus, and hippocampus (Li et al., 2012). As discussed above, common triggers for craving and seeking include drug-paired cues, drug-paired contexts, and stress. Of note, the most effective trigger for opioid-seeking in dependent individuals is often exposure to the drug itself (McHugh et al., 2014).

Gender differences in OUD exist at multiple levels of the addiction cycle (McHugh et al., 2013). Not only do women report increased functional impairment and higher likelihood of misusing opioids to cope with negative affect and pain compared to men, women report significantly more craving (Back et al., 2011). These were not associated with medication dose or pretreatment sensitivity towards OUD. Such behavioral consequences span sensitivity to opioid-reward and negative affective state, and sensitivity to stress hormones in neural circuits that mediate opioid withdrawal-induced negative affective states (Chartoff and McHugh, 2016).

3. Preclinical models of abstinence-induced reward-seeking

In this section we will focus on abstinence-based relapse models. There are three phases to this model: training, abstinence and relapse testing. During training, animals self-administer either drugs or palatable food (high fat or sweet foods/sucrose) over several days. In each day’s self-administration session, responses on an active manipulandum are paired with a cue (auditory or visual stimulus), while simultaneously leading to reward (see Venniro et al., 2016 and Grimm, 2020 for reviews). Following training, rats undergo abstinence, which can be either forced or voluntary and importantly results in increased reward-seeking behaviors. The majority of studies utilize forced abstinence, in which animals are kept in their home cages and no longer have access to the reward. For relapse testing, rats are placed back in the operant chambers using conditions in which responding on the manipulandum results in cue presentation but no reward delivery (Counotte et al., 2014; Grimm, 2020). Depending on the length of abstinence, the original reinforcer, biological sex, and many other factors, cue-triggered responding (i.e., reward-seeking) is enhanced relative to early abstinence. This phenomenon of potentiated drug-seeking has been termed “incubation of craving” (Grimm et al., 2001; Grimm, 2020).

3.1. Abstinence-induced sucrose- and high-fat diet-seeking in rodent models

Incubation of food craving (e.g. sucrose, high-fat diets and saccharin) has been described in rodent models. The majority of studies examining incubation of food craving use a protocol slightly modified from that used with drugs of abuse. For example, studies by Grimm et al. use a palatable food self-administration training schedule similar to that used for drugs of abuse that incorporates a food-paired cue. Animals then undergo forced abstinence for a variable number of days. Unlike abstinence-induced drug-seeking tests; however, incubation of food craving is measured by ultimately allowing rats access to the active manipulandum (previously paired with palatable food) for several hours prior to re-introduction of cues. Broadly, the longer the “abstinence” period, the greater the response on the active manipulandum when cues are introduced. This is interpreted as incubation of craving (Grimm, 2020). Specifically, it has been found that after 15, 21 and 30 days of abstinence (Grimm, 2020; Li and Frantz, 2010; Counotte et al., 2014) from sucrose self-administration, rats have a time-dependent increase in cue-induced sucrose-seeking. Additionally, incubation of craving for high-fat/high-sugar diets has also been shown. For example, it was found that cues previously paired to high-fat food and standard chow pellets increase reward-seeking after 30 days of forced abstinence (Darling et al., 2016; McCue et al., 2019). Interestingly, no incubation of craving was found for chocolate pellets in rats (Noye Tuplin et al., 2018). Although saccharin does not have any caloric value, it is highly palatable (sweet) and saccharin-associated cues can trigger seeking behaviors after 30 days of abstinence in rats (Aoyama et al., 2014).

To date, only one study has directly compared sex differences in incubation of sucrose craving (Madangopal et al., 2019). Although both males and females showed incubation of sucrose craving, this study did not find overt sex differences in sucrose-seeking after abstinence (1, 21, 60, 120 and 200 days). Other studies have examined the role of ovarian hormones on stress-induced food-seeking but no effects of ovarian hormones were observed (Calu et al., 2014; Pickens et al., 2011). Nevertheless, these findings do not exclude the possibility of ovarian hormones and the estrous cycle having a role in incubation of craving as it has been observed in humans and for other types of rewards (e.g. cocaine: Nicolas et al., 2019). Additionally, ovarian hormones and the estrous cycle have been previously shown to play a role in modulating the motivational responses to food cues (in the absence of reward delivery) in female rats (Alonso-Caraballo and Ferrario, 2019).

Importantly, either ovarian or testicular hormones can underlie sex-specific effects on reward-seeking. For example, abstinence from a junk-food diet enhanced NAcC glutamatergic transmission in males but not females (Alonso-Caraballo et al., 2020). Additionally, a role for testicular hormones in modulating the mesocorticolimbic reward system has also been described (Tobiansky et al., 2018). Overall, females show greater impulsive choice for food reward compared to males, and testicular hormones act to reduce impulsive choice in a food-seeking paradigm in males (Hernandez et al., 2020). As such, research studies examining the role of both ovarian and testicular gonadal hormones in reward-seeking (in general and during abstinence) is essential.

3.2. Abstinence-induced opioid-seeking in rodent models

Incubation of opioid craving has been described in animal models (Zhou et al., 2009), using procedures that incorporate forced or voluntary abstinence from drugs (Reiner et al., 2019). At the most basic level, forced abstinence involves removing the ability of the subject to obtain drug. The temporal effect of abstinence length on opioid-seeking behavior is consistent with an inverted U-shaped curve; there is typically a peak in opioid-seeking observed between 6–25 days post-abstinence, depending on conditions including the opioid itself, and whether context, cue, or stress is used to trigger reinstatement (Shalev et al., 2001).

In addition, there have been several recent studies examining incubation of opioid craving and relapse after voluntary abstinence in both males and females, including (Reiner et al., 2020; Venniro et al., 2019), and no sex differences have been observed in behavior. Interestingly, Venniro et al. (2019) showed that incubation of craving was observed in both sexes only after forced, but not voluntary, abstinence using their procedures (Venniro et al., 2017). Together, these findings suggest that the behavioral expression of incubation of opioid craving are similar in males and females, although it remains to be determined if the neurobiological mechanisms are the same. This is critical information for understanding the behavior itself and for considering translational studies aimed at mitigating incubation of craving. Interestingly, a recent study demonstrated that exogenously administered estradiol to freely cycling female rats nominally improved extinction of heroin-seeking, whereas a combination of estradiol and progesterone had a stronger impact (Vazquez et al., 2020). Although these findings point towards an important role of circulating gonadal hormones in regulating opioid-seeking, the study was under-powered to determine if estrous cycle stage was associated with levels of heroin seeking. As noted with Hernandez et al., 2020)above, it is also likely that male gonadal hormones play a role in incubation of craving. Regardless, these findings are consistent with a role for gonadal hormones in opioid seeking and further study is warranted.

4. Neural circuit-based mechanisms for abstinence-induced reward-seeking

There are multiple regions in the brain that mediate different aspects of reward-processing, motivation state, salience, and reward-seeking, with the mesocorticostriatal pathway being one of the most studied. Recent studies however have brought into sharp focus the effects of subcortical nuclei, such as the PVT and LH, and its interaction with the NAc. The LH in particular has emerged as a key brain region in mediating reward-seeking. The LH is the origin of brain-wide orexinergic projections (Peyron et al., 1998), which are involved in both arousal states and reward-related behavior. Accumulating evidence implicates LH orexin projections in mediating relapse to both drugs of abuse and natural rewards.

The PVT is considered part of hypothalamic–thalamic–striatal circuitry that integrates information related to motivation, reward, and energy balance control (Millan, 2017; Kelley et al., 2005). The major projections of the PVT are to the NAc, amygdala (Amy), and bed nucleus of the stria terminalis (BNST). These regions have been extensively studied in relation to motivated behavior, reward, aversion, and fear/anxiety (Kirouac, 2015). As such, the PVT is a lynchpin for coordinating responses to positive and negative affective states that lead to drug or food seeking and relapse to unregulated intake. The vast majority of PVT neurons project to the NAc (Dong et al., 2017), forming excitatory synaptic contact with NAc medium spiny neurons (MSNs). There is a distinct topography in which the anterior PVT (aPVT) projects preferentially to the dorsal NAc shell (NAcSh), whereas the posterior PVT (pPVT) projects preferentially to the ventromedial NAcSh and NAc core (NAcC) (Dong et al., 2017). This anatomical distinction is important, although not fully understood, because the dorsal and ventral subregions of the NAcSh can have opposing effects on motivated behavior (Al-Hasani et al., 2015; Marchant et al., 2009; Millan et al., 2017). The pPVT also projects strongly to the central nucleus of the amygdala (CeA), where it is understood to regulate the expression of fear responses (Do-Monte et al., 2015; Penzo et al., 2015). In this section we will focus on aspects of the hypothalamic–thalamic–striatal circuitry neuronal projections that mediate reward-seeking (see Fig.1).

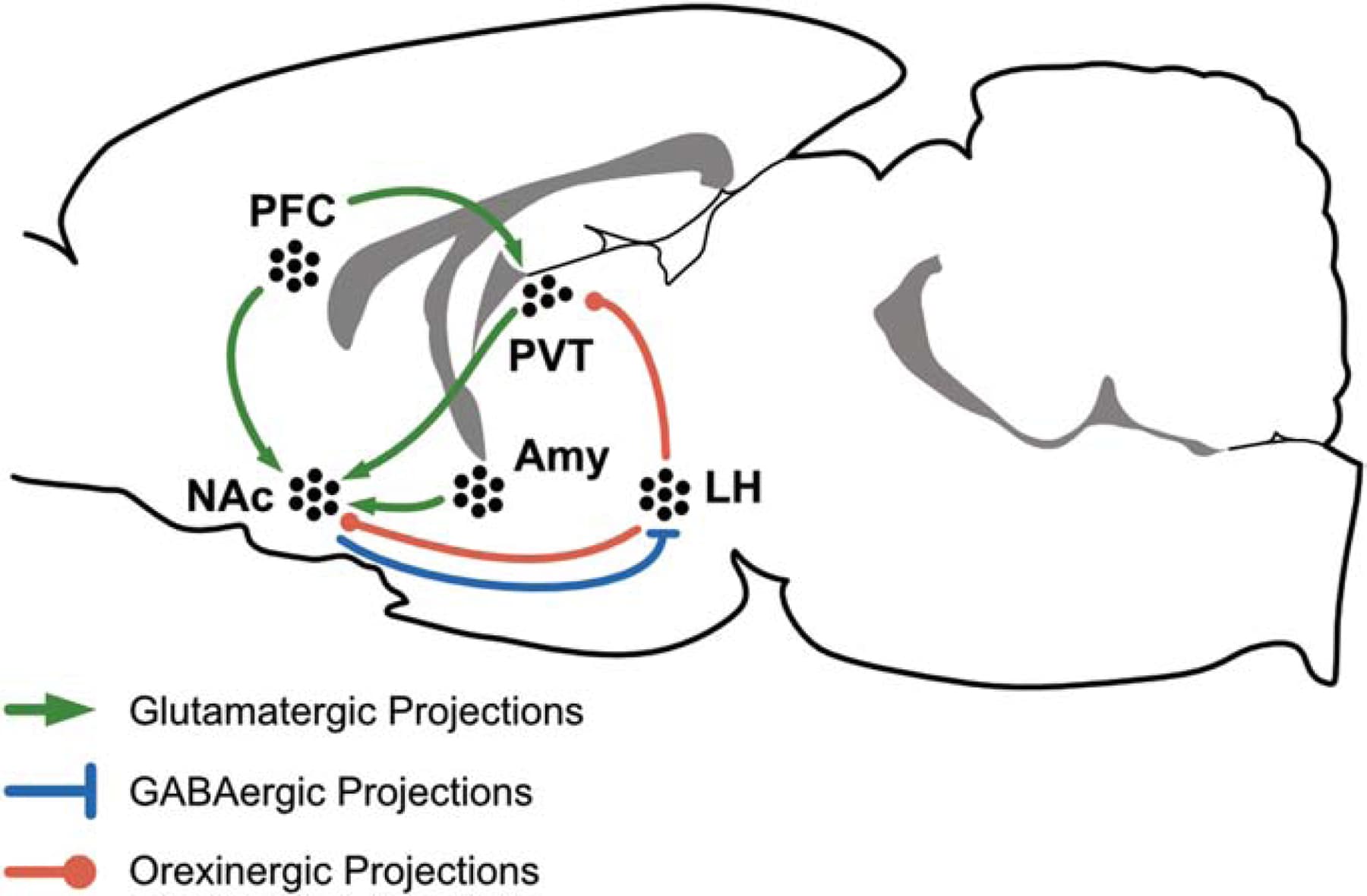

Figure 1. Hypothalamic–thalamic–corticostriatal circuitry involved in food- and opioid-seeking.

An important consideration for the study of PVT projections and their functions is the high degree of collateralization in PVT projections. As an example, it was found through retrograde labeling that 50% of PVT neurons projecting to the dorsolateral BNST and the CeA also projected to the NAcSh (Dong, 2017). This extensive collateralization of PVT axons suggests this region coordinates a complex network of cortical and extended amygdala regions important for motivated behavior, reward-seeking, and emotional valence. To date, relatively little is known about how PVT collateralization translates to behavior, resulting in a gap in knowledge.

4.1. Neural circuit-based mechanisms for abstinence-induced food-seeking

Food cues elicit strong activation responses in the brain’s reward system areas. In this section, we will discuss potential neural circuit-based mechanisms underlying incubation of food craving. Our main focus will be on circuits composed of connections among the PVT, LH, Amy, and NAc, as well as projection-specific manipulations and their behavioral outcomes (Fig. 1 and Table 1). Both the PVT and the NAc are strategically positioned as major interfaces between cortical, hypothalamic and mesolimbic structures. In addition, both PVT and NAc play key roles in the control of feeding behaviors, motivation, reward and learning (for an extensive review on the PVT see Millan et al., 2017).

TABLE 1:

Projection-specific role in food-seeking behaviors.

Abbreviations: Amy, Amygdala; BLA; Basolateral Amygdala; LH, Lateral Hypothalamus; NAc, Nucleus Accumbens; PVT, Paraventricular Nucleus of the Thalamus; PFC, Prefrontal Cortex; vmPFC, Ventro-medial PFC.

While the role of the PVT on abstinence-induced food-seeking or incubation of craving has not yet been meticulously examined, there are several studies that clearly describe the role of the PVT in modulating food cue motivated behaviors. For example, ibotenic acid lesions of the PVT increase motivational responses towards food-predictive cues in goal-tracker rats (Haight et al., 2015). These results suggest that the PVT plays a critical role in attenuating the attribution of incentive salience to reward-predictive cues. In contrast, PVT pharmacological inactivation with muscimol (GABA_A agonist; Do-Monte et al., 2017) increases cue-induced sucrose-seeking (only when expected reward is omitted; a frustrative condition). In addition, specific intra-PVT activation of glucagon-like peptide receptor leads to decreased cue-induced sucrose-seeking (Ong et al., 2017), whereas specific stimulation of glucose transporter 2 (GLUT2) in the PVT^GLUT2-NAc increases motivation to obtain sucrose in an operant conditioning task (Labouébe et al., 2016). Furthermore, photostimulation of aPVT projections to NAcSh decreases sucrose-seeking (Do-Monte et al., 2017), whereas aPVT-NAcSh photoinhibition increases sucrose-seeking (when expected reward was omitted). Additionally, facilitation of pPVT orexin-A transmission facilitated neuronal responses in the NAcC and photostimulation of pPVT to NAcC pathway led to increased cue-induced sucrose-seeking (Meffre et al., 2019). Both photostimulation and photoinhibition of aPVT projections to the central nucleus of the amygdala (CeA) inhibits sucrose-seeking in rats (Do-Monte et al., 2017). Moreover, PFC-PVT-NAc connections are involved in formation of cue-reward associations (Otis et al., 2017; 2019), whereas LH-PVT-NAc connections are involved in reward consumption and initiation of feeding behaviors (Otis et al., 2019). It has also been found that photoinhibition of BLA to NAc projections decreases sucrose-seeking (Stuber et al., 2011). When taken together, the wide range of methods, anatomical subregions, behavioral outcomes, and complexity of the systems makes it impossible to ascribe a single function to the PVT in the context of palatable food-seeking. However, the combination of findings described suggests the PVT integrates stimulus valence, affective and arousal states, and metabolic balance to stimulate or suppress food-seeking. This has important ramifications for treatment of compulsive food-related disorders.

Unfortunately, little is known about the role of the estrous cycle or male/female gonadal hormones in the modulation of these pathways. However, sex-specific effects of abstinence from a junk-food diet has been found in obesity-susceptible rats. In this case, NAcC glutamatergic transmission was enhanced in males but not females (Alonso-Caraballo et al., 2020). Given that gonadal hormones play an important role in food intake and motivational responses to food cues, it will be important to extend this line of research to studies of incubation of craving for food reinforcers.

4.2. Neural circuit-based mechanisms for abstinence-induced opioid-seeking

Chemogenetic and optogenetic studies of the PVT-NAc and NAc-LH pathways play key roles in mediating various aspects of addictive-like behaviors such as withdrawal-associated aversion, retrieval, and relapse to opioid-seeking behavior (Keyes et al., 2020; Zhu et al., 2016). Glutamatergic PVT neurons project onto both dopaminergic D1 and D2 receptor-expressing MSNs in the NAcSh. However, repeated opioid exposure increases synaptic potentiation specifically at PVT-D2-MSNs synapses (Zhu et al., 2016). D2-MSNs that project onto neighboring D1-MSNs enhances the feed-forward inhibition of these D1-MSNs that in turn precipitates opioid-relapse. Direct activation of these D1 NAcSh–LH neurons prevents relapse (Keyes et al., 2020). The role of the PVT in addiction is an area of active exploration. The PVT has connections—some being reciprocal—with multiple reward/aversion-related regions of the brain, and numerous studies implicate these pathways in addictive-like behavior (Zhou & Zhu, 2019). LH orexinergic neurons play a major role in motivated behavior, including cocaine- and opioid-seeking in rodent models of addictive-like behavior (James et al., 2017). Studies pairing opioid self-administration and reinstatement models, as well as behavioral economics with systemic inhibition of orexin receptors have shown that the orexinergic system regulates motivation towards drug-seeking (James et al., 2017). However, the projection-specific role of orexinergic neurons in mediating motivation towards opioid-seeking remains to be explored. Studies from natural reward and LH–PVT projections (Meffre et al., 2019) lend credence to this. In addition, projections to the NAc from the ventro-medial prefrontal cortex (vmPFC) mediate opioid-seeking (Bossert et al., 2012). Context-induced heroin-reinstatement is mediated through interaction of vmPFC glutamatergic projections and postsynaptic dopaminergic D1 signaling.

5. Conclusions

This review summarizes a relatively nascent collection of studies suggesting a role for hypothalamic–thalamic–striatal circuitry in both opioid- and palatable food-seeking during abstinence—a strong preclinical model of relapse. Specifically, connections among the LH, PVT, NAc, and AMY serve to integrate internal and external signals related to affective state, arousal, metabolic balance, and motivation to drive relapse-related behaviors. The similarities between opioid- and food- seeking behavior and neural mechanisms are striking and often contrary to literature on psychostimulants (Badiani et al., 2011).

Few studies have as yet directly compared behaviors and neural mechanisms of incubation of craving in both males and females. On balance, the studies that have been reported find similar behavioral responses: both males and females show an increase in reward-seeking with abstinence. This is critical information, as the development of effective treatments depends on how both males and females would respond. It also highlights the importance of digging deeper to parse out the molecular, cellular, and circuit-based mechanisms for behavior. As discussed, gonadal hormones regulate reward-seeking and reward-based behavior, and since estrogen and testosterone are obviously different hormones, it is likely that different mechanisms underlie behavioral responses. This is a rich area for discovery.

Through this review, our goal was to describe what is known thus far and then identify some key gaps in knowledge that we and others can address in future preclinical and clinical studies. For example, one gap is identifying the neural circuits and modulators that connect affective state to motivated behavior. Specifically, does cue-triggered reward-seeking during abstinence arise through positive or negative mood states, and what brain region(s) with hypothalamic–thalamic–striatal circuitry is necessary? Another gap in knowledge is detailed understanding of how neurotransmitters (e.g. glutamate, GABA) and neuromodulators (e.g. dopamine, orexin, dynorphin) interact within this circuitry to affect specific aspects of motivated behavior related to opioid- and palatable food-seeking. There are numerous other questions, but a final gap in knowledge raised in this review is a general lack of understanding of the impact of biological sex on the functioning of this fundamental circuit.

TABLE 2:

Projection-specific role in opioid-seeking behaviors.

Abbreviations: Amy, Amygdala; BLA; Basolateral Amygdala; LH, Lateral Hypothalamus; NAc, Nucleus Accumbens; PVT, Paraventricular Nucleus of the Thalamus; PFC, Prefrontal Cortex; vmPFC, Ventro-medial PFC.

Abbreviations:

Amy: amygdala

BLA: basolateral amygdala

BOLD: blood-oxygen-level-dependent imaging

CeA: central amygdala

GLUT2: glucose transporter 2

LH: lateral hypothalamus

MSNs: medium spiny neurons

NAc: nucleus accumbens

NacC: NAc core

NAcSh: NAc shell

PVT: paraventricular nucleus of the thalamus

aPVT: anterior PVT

pPVT: posterior PVT

PFC: prefrontal cortex

OUD: opioid use disorder

SUD: substance use disorder

vmPFC: ventro medial PFC
